Name: Juniper EX9204-RED3B-DC 4-Slot Redundant Modular Ethernet Switch
Brand: Juniper Networks International
SKU: 120742
Price: 51372.49 USD
Availability: BackOrder

Product Details

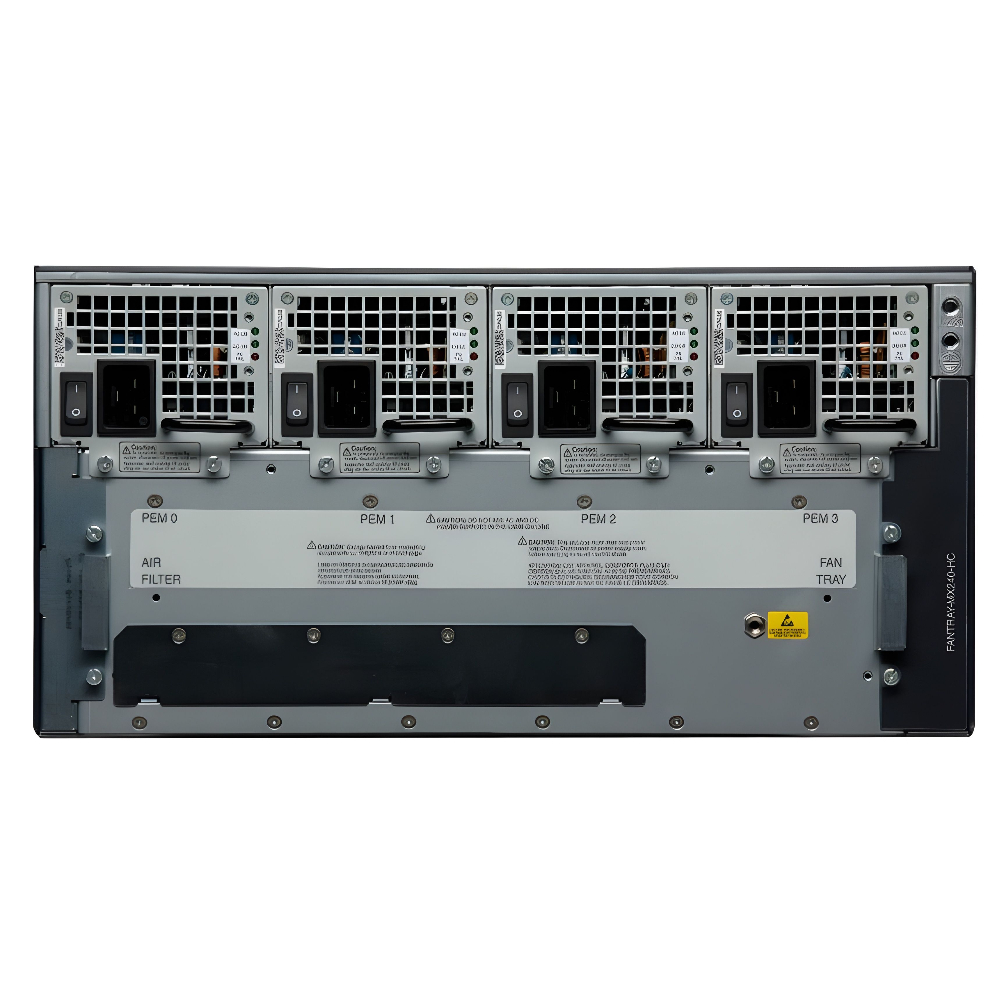

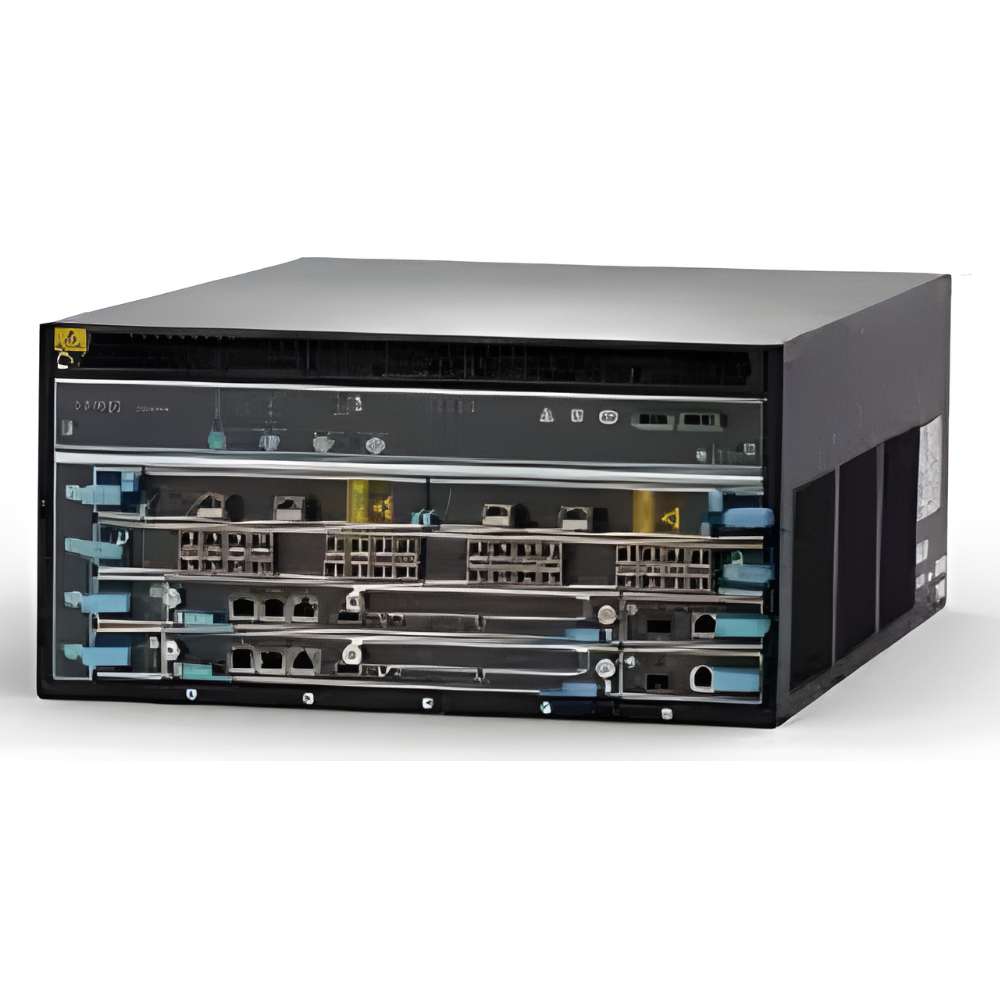

The Juniper EX9204-RED3B-DC is a redundant modular Ethernet switch system from the Juniper EX9200 Series, designed for high-performance campus aggregation, enterprise core, and data center networking. The EX9204 platform provides up to 1.6 Tbps throughput and supports scalable, high-density network deployments. This configuration includes an EX9204 chassis with passive midplane, 2 × EX9200-RE2 Routing Engines, 2 × EX9200-SF2 Switch Fabric modules, 1 × fan tray, and 4 × 2,520W DC power supplies. The dual Routing Engines and dual Switch Fabric modules provide a redundant architecture for mission-critical network environments.

Product Type	Switch Chassis
Manufacturer Part Number	EX9204-RED3B-DC
Manufacturer Website Address	http://www.juniper.net
Marketing Information	The EX9200 line of programmable, flexible and scalable modular Ethernet core switches simplifies the deployment of cloud applications, virtualized servers and rich media collaboration tools across campus and data center environments. The EX9200 is also a key component of Juniper's AI-Driven Enterprise. The switch decouples the overlay network from the underlay with technologies such as Ethernet VPN (EVPN) and Virtual Extensible LAN (VXLAN), addressing the needs of the modern enterprise network by allowing network administrators to create logical L2 networks over different L3 networks. The EX9200 is based on Juniper One custom silicon, an ASIC designed by Juniper which provides a programmable Packet Forwarding Engine (PFE) and allows for native support of networking protocols such as virtualization using MPLS over IP and overlay network protocols. ASIC micro code changes delivered through updates to Juniper Networks Junos® operating system provide investment protection by allowing existing hardware to support new or future networking protocols. The programmability of the EX9200 allows it to support Junos OS-based automation along with the Junos SDK, which enables integration with Puppet and other automation applications. The EX9200's network programmability also enables integration with leading orchestration applications such as OpenStack. Three EX9200 chassis options are available, providing full deployment flexibility: EX9204 Ethernet Switch, a 4-slot, 5 U chassis that supports up to three line cards EX9208 Ethernet Switch, an 8-slot, 8 U chassis that supports up to six line cards EX9214 Ethernet Switch, a 14-slot, 16 U chassis that supports up to 12 line cards All three EX9200 chassis can accommodate any combination of the following EX9200 Ethernet line cards: EX9200-15C, a 15-port 100GbE QSFP28 or 40GbE QSFP+ line card EX9200-12QS, a multi-rate 12-port 40GbE QSFP+ or 4-port 100GbE QSFP28 line card EX9200-40XS, a 40-port 10GbE SFP+ line card that supports MACsec EX9200-32XS, a 32-port 10GbE small form factor pluggable transceiver plus (SFP+) line card EX9200-40F-M, a 40-port 100FX/1000BASE-X line card supporting MACsec EX9200-40F, a 40-port 100FX/1000BASE-X small form-factor pluggable transceiver (SFP) line card EX9200-40T, a 40-port 10/100/1000BASE-T RJ-45 line card EX9200-6QS, a 6-port 40GbE QSFP+ or 24-port 10GbE SFP+ combo line card EX9200-2C-8XS, a 2-port 100GbE C form-factor pluggable (CFP) + 8-port 10GbE SFP+ line card
